Nuclear Power Plant Reinforced Graphite Composite Plate for Gasket

Product Categories
Anqing Cling-Seal Manufactory Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

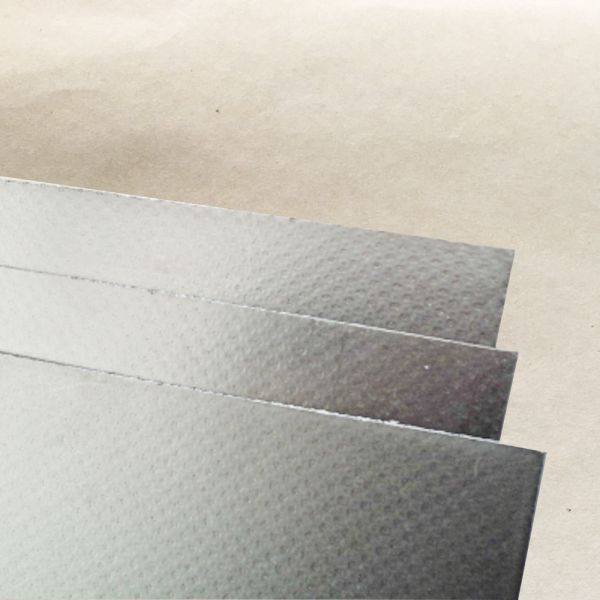

Nuclear Power Plant Reinforced Graphite Composite Plate for Gasket

  • 1
  • 2
  • 3

Brand Name : CLINGSEAL

Model Number : CS1080T

Certification : ISO,SGS

Place of Origin : CHINA

MOQ : 500KGS

Price : USD 2.15-3.0 PER KG

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100Tons per month

Delivery Time : 1-4 weeks

Packaging Details : pallets or wooden case

Grade : Industrial Grade

Type : Flexible Sheet,Composite Sheet,Reinforced Sheet

Application : Gaskets, oil sealing, cylinder head gaskets, steam - cycling systems, exhaust applications

C content (%) : 95%,97%,98%,99.9%,99%

Thickness : 1.5mm

Material : Reinforced graphite

Density : 1.5 g/cm3

Hardness : 80 Shore A

Color : Black

Product name : Graphite sheet

Shape : can be customized

Sample : Availble

Width : ≤1500 mm

Thickness Deviation (mm) : 0.05

Flexural Strength : 15 MPa

Electrical Conductivity : Non-conductive

Chemical Resistance : Excellent

Surface Finish : Smooth

Tensile Strength : 10 MPa

Compressibility : 30%

Temperature Resistance : up to 500°C

Recovery : 20%

Thermal Conductivity : 1.5 W/mK

Pressure Resistance : up to 100 bar

Standard Size : 1000mm x 1000mm

Contact Now

Nuclear Power Plant Reinforced Graphite Composite Gasket​
Engineered for extreme environments, our Nuclear Power Plant Reinforced Graphite Composite Gasket delivers unmatched reliability in high-temperature, high-pressure settings. Designed with a perforated metal core and reinforced graphite layers, this gasket ensures leak-free performance in critical systems like steam cycling, exhaust manifolds, and nuclear power infrastructure.

Why Choose Our Reinforced Graphite Composite Gasket?

  • Robust Construction: Dual-layer pure flexible graphite (95-99% carbon) bonded to a perforated metal insert (0.2–0.25mm thickness). Customizable with carbon steel (tinplate), SS201, 304, or 316 stainless steel.

  • Superior Performance: Withstands temperatures and pressures exceeding industry standards while maintaining structural integrity—no delamination or deformation.

  • Versatile Adaptability: Ideal for oil sealing, cylinder head gaskets, exhaust systems, and nuclear plant components.

  • Cost-Effective: Optimized for durability and yield, reducing replacement frequency and downtime.

Technical Specifications

  • Thickness Options: 1.0–6.0mm (multi-layer bonding available for thicker profiles, e.g., 3+2 layered graphite-metal composite).

  • Standard Sizes: 500x500mm to 1000x1500mm. Fully customizable dimensions upon request.

  • Compliance: Suitable for ASTM and industrial-grade applications.

Nuclear Power Plant Reinforced Graphite Composite Plate for Gasket

Applications

  • Nuclear power plant valve systems

  • High-pressure steam turbines

  • Petrochemical pipelines and exhaust manifolds

  • Automotive and aerospace sealing solutions

Optimize Your Selection
For best results, select the thinnest viable thickness (1.0–3.0mm recommended) to balance performance and cost. Unsure about material compatibility? Use our Gasket Material Selector Tool or consult our experts for tailored solutions.

Custom Orders & Support
Require a bespoke Reinforced Graphite Composite Gasket? Contact us for specialized configurations, including custom metal cores, adhesives, or non-standard dimensions.

Boost operational safety and efficiency with our Nuclear Power Plant Reinforced Graphite Composite Gasket—engineered for precision, built to last.



Physical Property:

Item Data
Tensile Strength (MPa,min.) ≥30
Compressibility (%,) 10-20
Recovery (%) ≥35
150ºC, At IRM 903# for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
21ºC~30ºC, At B Fuel for 5hours Thickness Increase(%) ≤10
Weight Increase(%) ≤10
Thickness Deviation(mm) 0.05


Product Technical Details
As a general rule, graphite is:
• Good for use with steam
• Good ozone resistance
• Good with natural gas
